What is now the Thameslink line running from Farringdon down through City Thameslink and Blackfriars stations and beyond has an interesting past.

In a northwards direction the line crossed the Thames, arriving at Blackfriars station in 1864. Only a few hundred yards north of this was Ludgate Hill station. The line finally reached the City Widened lines at Farringdon in 1866. An addition intermediate station at Snow Hill and a spur from Ludgate Hill to a terminus at Holborn Viaduct were opened in 1874.

Competition from local tube services and a decline in freight traffic caused the closure of the line in 1969.
It was rebuilt largely underground in 1989-1991 as part of the new Thameslink passenger line. Three of the original stations on its route (or connected with it) have disappeared.

The section of the line south from Blackfriars is dealt with on the next page.






The Widened Lines at Farringdon station at the southern end of the station with a northbound train arriving prior to the line being electrified for Thameslink services.

The tunnel on the right of the photo leads to Snow Hill - see below for details.

(Photo: Paul Hepworth. © 2015)


The top level photo shows the southern end of Farringdon station in 1980 or so. The track veering round to the left is en route to Barbican and Moorgate. The tunnel on the right, is the one that leads down to Snow Hill/ Ludgate Circus/ Blackfriars. It was reopened to passenger service in 1988, as part of the Thameslink services.

The reverse situation now exists i.e. the Thameslink line remains in use but the Widened Lines connection to Moorgate is closed. To cope with increased passenger traffic, the platforms at Farringdon needed to be lengthened to accommodate 12-car trains. The platforms could not be extended sufficiently at the northern end due to the steep slope of the track, so they had to be extended at the southern end, seen here. The extension cut across the area used by the Moorgate tracks, so the line to Moorgate was closed.

Move your cursor over the above image to view it as it was in Jan 2007.




Wider angled view of the above in 2010. The tracks to Moorgate have been removed, although the curve of the platform accommodating the track has not been altered. The new platform extension to allow 12 car trains would be built in the space vacated by the track removal. There is little space for the northbound platform extension, as seen on the right of the photo - the entire building was demolished to make way for the extra platform space needed.

For a dramatic transformation, move your cursor over the image to see the newly opened platform extension in Mar 2012. The new extension is in fact now treated as the main part of the Thameslink platforms - shorter trains stop at this end and not at the northern end, which has narrower platforms.

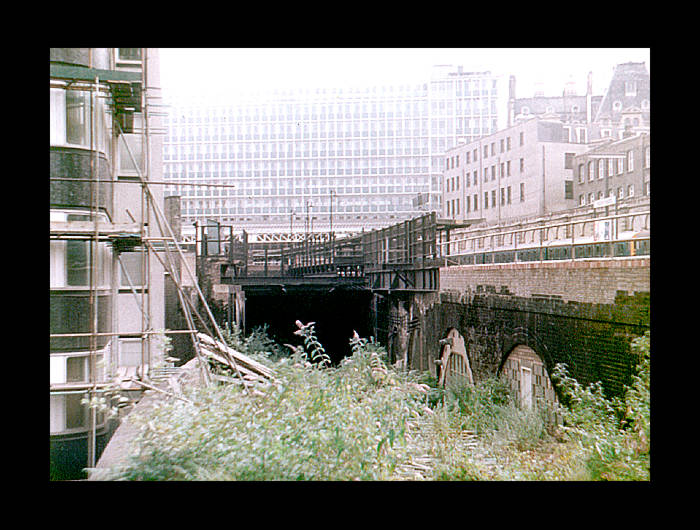

Northward view of the other end of the tunnel, rising to the surface north of Ludgate Hill in the late 1970s when the Snow Hill tunnel was reopened for through services. The intermediate station at Snow Hill (closed in 1916) still has some remains, visible from Thameslink trains travelling between Farringdon and City Thameslink stations. The viaduct on the right of the photos carries the (then) existing line to Holborn Viaduct terminus, the ticket office of which was housed in the office block visible in the photo above the tunnel entrance.

For Simon Foster's 1988 photo taken from the same viewpoint, move your cursor over the image.
(Photo ©2005. Simon Foster)

For the full set of photos from his Kentish Town - Blackfriars cab ride, click here.




Holborn Viaduct terminus, serving South London, was closed in 1990 and replaced by City Thameslink station on the new sub-surface line that allowed services to run between North and South London again.

There are no remains left of this station.






This central island platform was the last part of the station to see service. Before the final closure of the station, pre-demolition works involved dismantling the area to the right of the two central tracks.

Photo ©2005. Richard Allen






A railtour train stationary on the eastern platform.

Photo ©2005. Richard Allen




Looking south from Holborn Viaduct station. The train in the photo is passing the site of the long disused Ludgate Hill station. It did have an overall roof once and the chimney-like structure on the left of the line formed part of the station.

In between Ludgate Hill station and the photographer is the bridge taking the line over Ludgate Hill itself. The disused track bed just about visible on the right is that which led to/from the Snow Hill tunnel to Farringdon (as shown in the photo four above this one).




The aforementioned bridge carrying the line over Ludgate Hill, that blocked the view of St.Paul's Cathedral from Ludgate Circus and Fleet Street. As part of the rebuiliding of the line, this bridge was demolished and the line diverted into tunnels.

The British Telecom telephone cables that ran under the pavement had to be diverted below the route that the tunnels were due to take. The cables were dropped into sixty foot shafts either side of the tunnel route, which gives an indication as to the fairly shallow depth of the tunnels.

(photo late 1989/early 1990)




The demolition of Holborn Viaduct in progress.





Westward view in 1979. The bridge over Ludgate Hill is on the extreme right of the photo. On the extreme left is the brickwork for Ludgate Hill station.




A view that provides good perspective of the short distances between the original stations: the substantial remains of Ludgate Hill station (closed in 1929) are on the left, the bridge over Ludgate Hill is in the centre with a bus passing beneath it, and the train visible on the track above and to the right is at Holborn Viaduct station. None of the railway structures shown in this photo exist today.

The land shown here was protected for a while for use as part of the Jubilee Line extension from Charing Cross, before the route change that saw it built via Westminster and Waterloo instead.




Ludgate Hill station in 1979 minus its roof.




Ludgate Hill station.

For further photos of this station: www.disused-stations.org.uk


Photos taken between 1977 and 1981, except where stated.


The Blackfriars to Loughborough Junction section is dealt with on the next page.
